Danfoss programmable controllers
Danfoss MCX and AlsmaRT controllers
Both Danfoss programmable-controller lines: the AlsmaRT AS-CX06 family with its I/O modules, display and power supply, and the MCX range from the 6-relay MCX06C to the 20-relay MCX20B2. Specifications are Danfoss's own product data; every code links to its page on GrossAutomation.com.

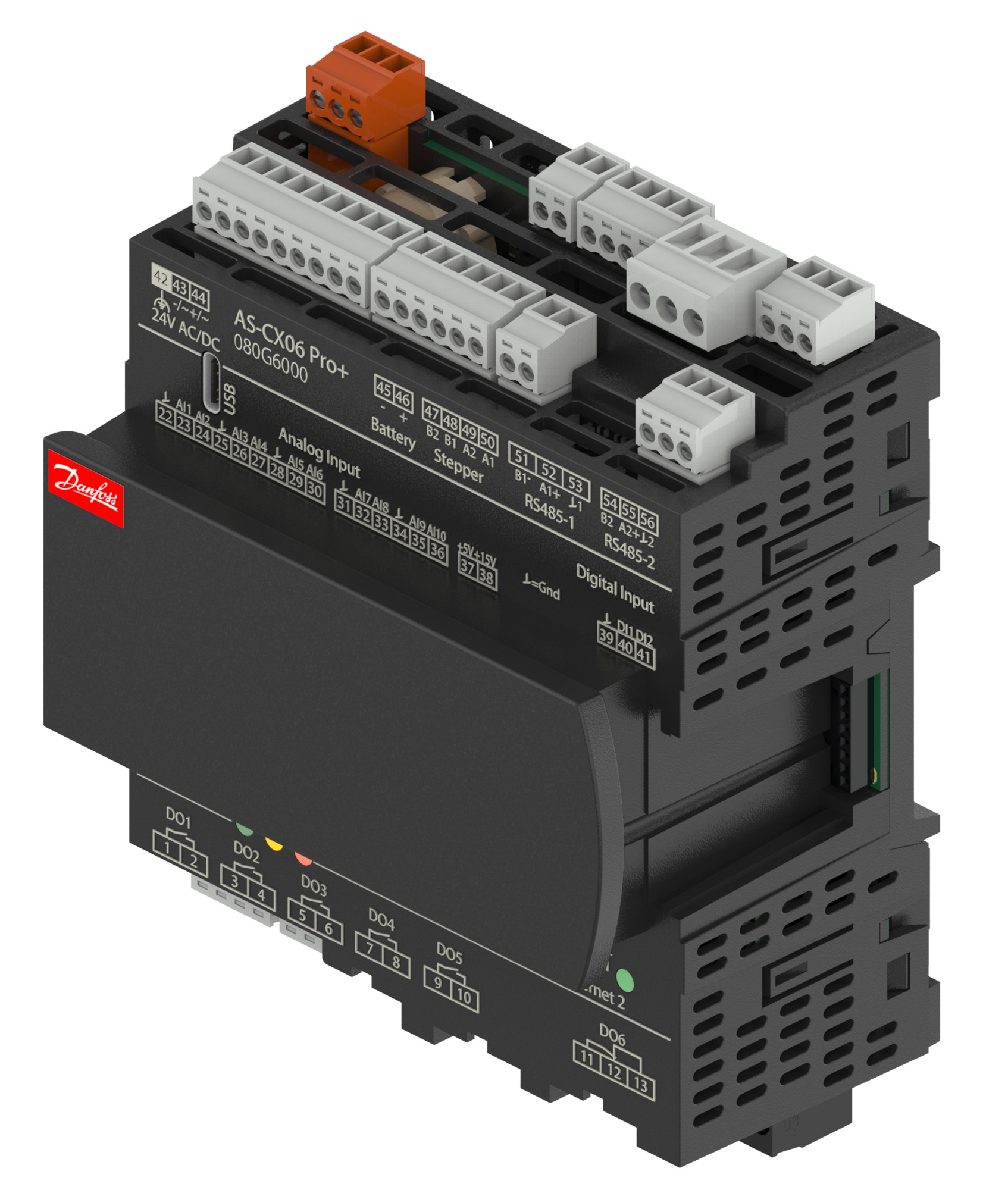

AlsmaRT: AS-CX06 controllers
Every AS-CX06 variant has the same I/O and ratings. They differ in communication ports, stepper-driver control and an optional solid-state relay.
Same on every AS-CX06:
- Digital inputs: 12
- Digital outputs: 6
- Analog inputs: 10
- Analog outputs: 3
- Supply: 24 V AC / 24–60 V DC
- Power consumption: 30 W
- Enclosure: IP20
- Mounting: DIN rail
- Display: none built in; the AS-UI display connects over RJ11 (CAN)
- Approvals: CE; EAC; RCM; UA; UL Recognized
| Variant | Communication | Also | Single pack (connector kit included) | Industrial pack of 27 (no connector kit) |
|---|---|---|---|---|
| Lite | 1xRS485; CAN-FD; RJ11 (CAN) to User Interface; USB-C | — | 080G6008 | 080G6009 |
| Mid | 2xRS485; CAN-FD; RJ11 (CAN) to User Interface; USB-C | — | 080G6006 | 080G6007 |
| Mid SSR | 2xRS485; CAN-FD; RJ11 (CAN) to User Interface; USB-C | 1 solid-state relay | 080G6040 | 080G6041 |
| Mid+ | 2xRS485; CAN-FD; RJ11 (CAN) to User Interface; USB-C | Stepper driver control: 1 | 080G6004 | 080G6005 |
| Mid+ SSR | 2xRS485; CAN-FD; RJ11 (CAN) to User Interface; USB-C | Stepper driver control: 1 1 solid-state relay | 080G6038 | 080G6039 |
| Pro | 2xEthernet; 2xRS485; CAN-FD; RJ11 (CAN) to User Interface; USB-C | — | 080G6002 | 080G6003 |
| Pro+ | 2xRS485; CAN-FD; USB-C; RJ11 (CAN) to User Interface; 2xEthernet | Stepper driver control: 1 | 080G6000 | 080G6001 |
I/O modules, display and power supply

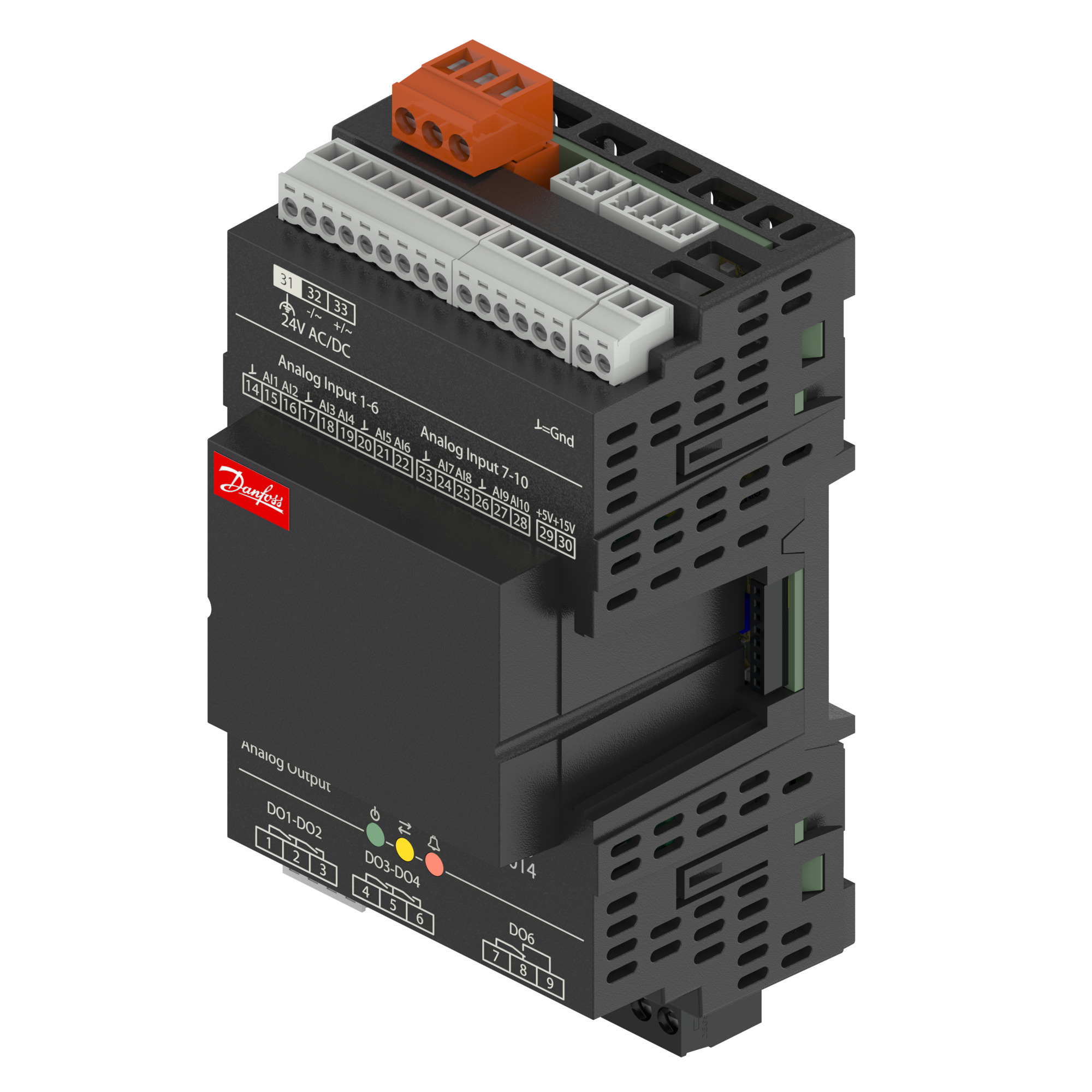

AS-XP05 I/O module
- Digital inputs: 10
- Digital outputs: 5
- Analog inputs: 10
- Analog outputs: 2
- Power consumption: 5 W
- Enclosure: IP20
- Mounting: DIN rail
- Approvals: CE; EAC; RCM; UA; UL Recognized
Code 080G6014 · Request a quote

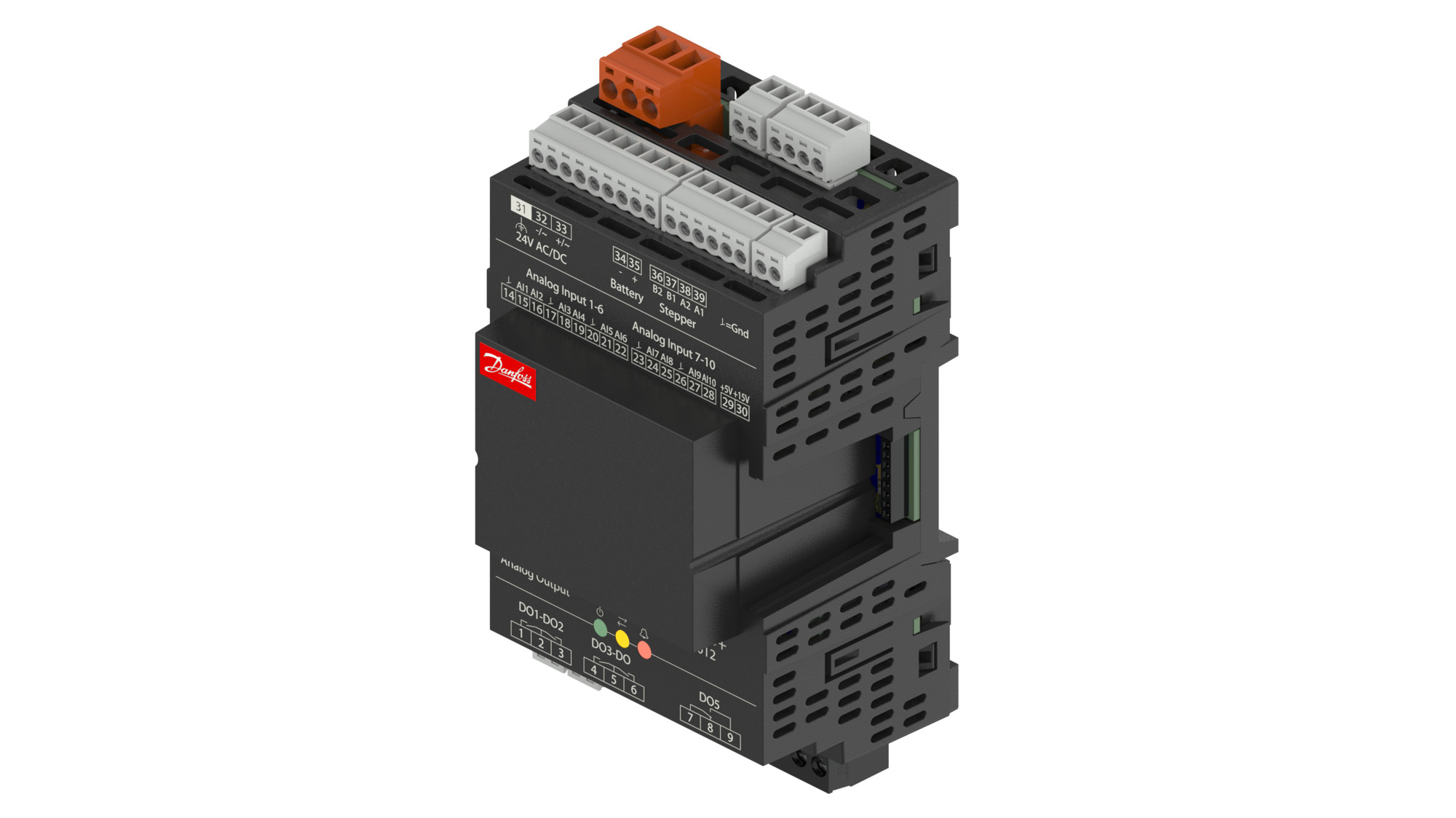

AS-XP05+ I/O module
- Digital inputs: 10
- Digital outputs: 5
- Analog inputs: 10
- Analog outputs: 2
- Stepper driver control: 1
- Power consumption: 5 W
- Enclosure: IP20
- Mounting: DIN rail
- Approvals: CE; EAC; RCM; UA; UL Recognized
Code 080G6012 · Request a quote

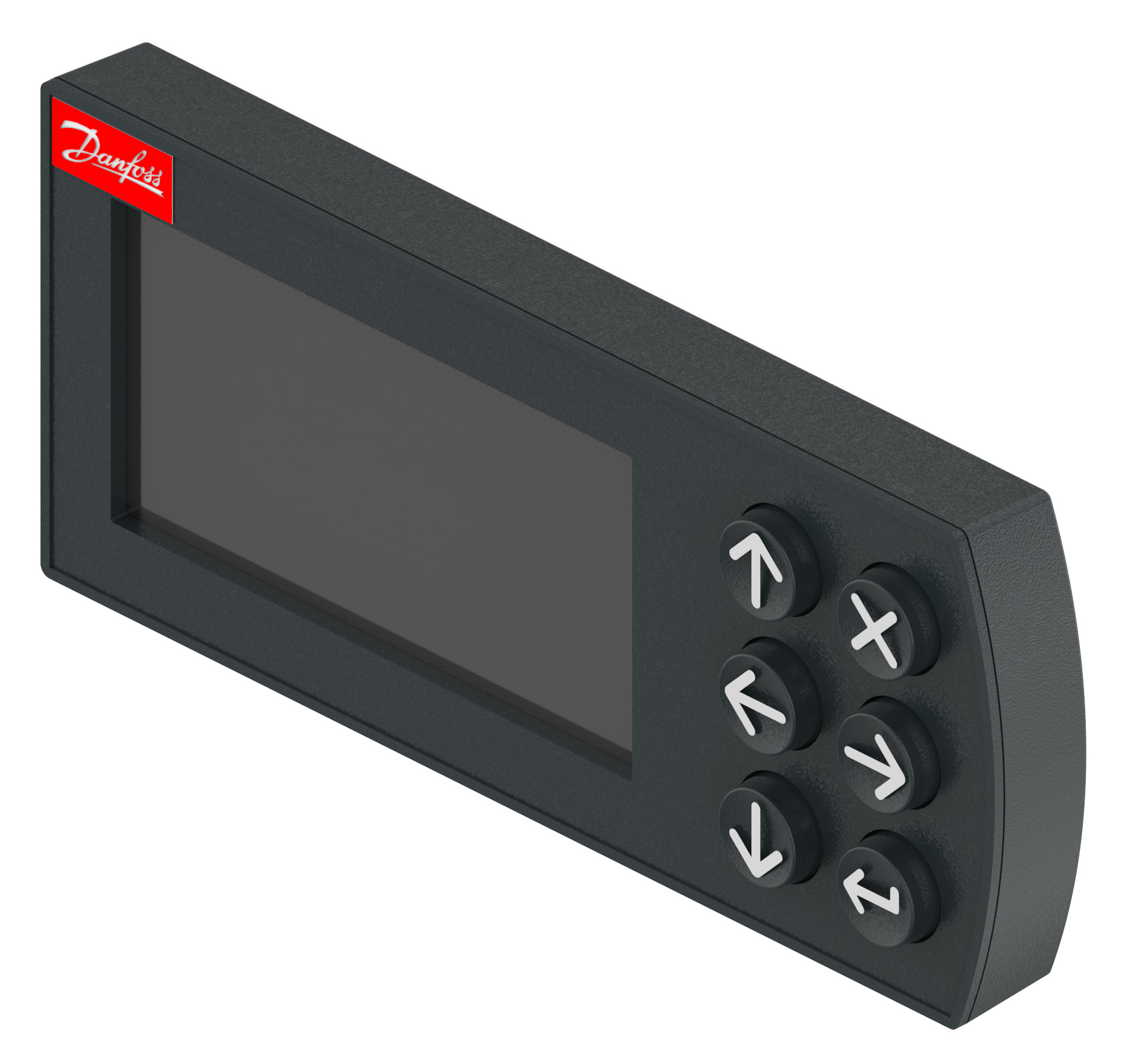

AS-UI snap-on display
- Display: LCD 128x64 mono
- Enclosure: IP40
- Mounting: Snap-on
- Approvals: CE; EAC; RCM; UA; UL Recognized
Code 080G6016 · Request a quote

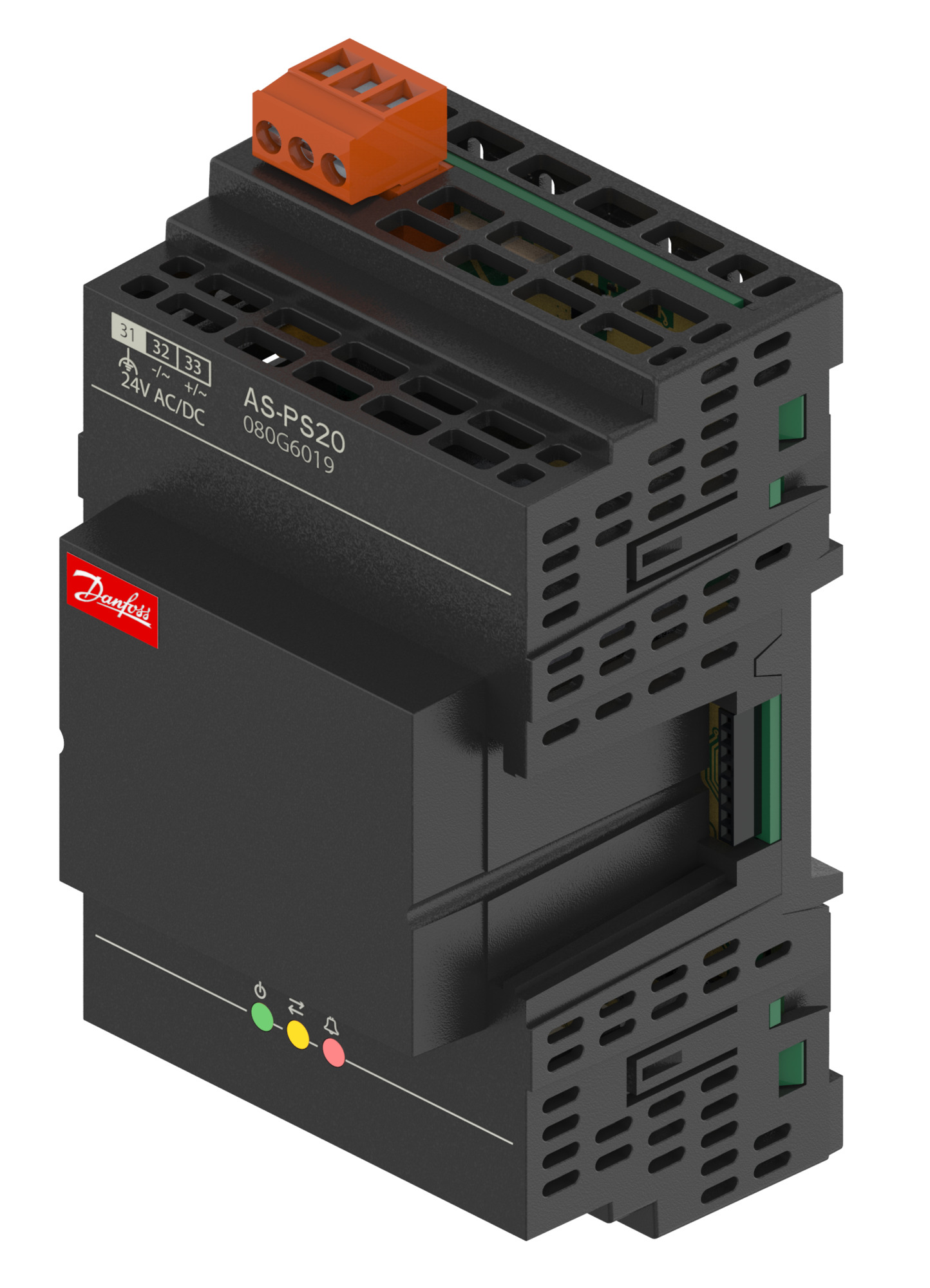

AS-PS20 power supply
- Supply: 24 V AC / 24–60 V DC
- Power consumption: 26 W
- Enclosure: IP20
- Mounting: DIN rail
- Approvals: C UL US LISTED; CE; EAC
Code 080G6019 · Request a quote
AlsmaRT connector kits and covers
| Code | Danfoss designation | Packing |
|---|---|---|
| 080G6032 | AS-CX06 Lite Connector kit | Industrial pack, 27 pc |
| 080G6031 | AS-CX06 Mid/Pro Connector kit | Industrial pack, 27 pc |
| 080G6030 | AS-CX06 Mid+/Pro+Connector kit | Industrial pack, 27 pc |
| 080G6034 | AS-XP05 Connector kit | Industrial pack, 36 pc |
| 080G6035 | AS-XP05+ Connector kit | Industrial pack, 36 pc |
| 080G6033 | AS-XP10 Connector kit | Industrial pack, 27 pc |
| 080G6037 | AS-PS20 Connector Kit | Industrial pack, 36 pc |
| 080G6028 | AS-Side connector kit 5/pcs | Single pack, 1 pc |
| 080G6029 | AS-DIN Side connector kit | Single pack, 1 pc |
| 080G6018 | AS-UI Cover kit 2/pcs | Single pack, 2 pc |
MCX programmable controllers
Seven MCX models, from 6 to 20 relay outputs. For each model the list shows what every code has in common; the table shows where the codes differ.

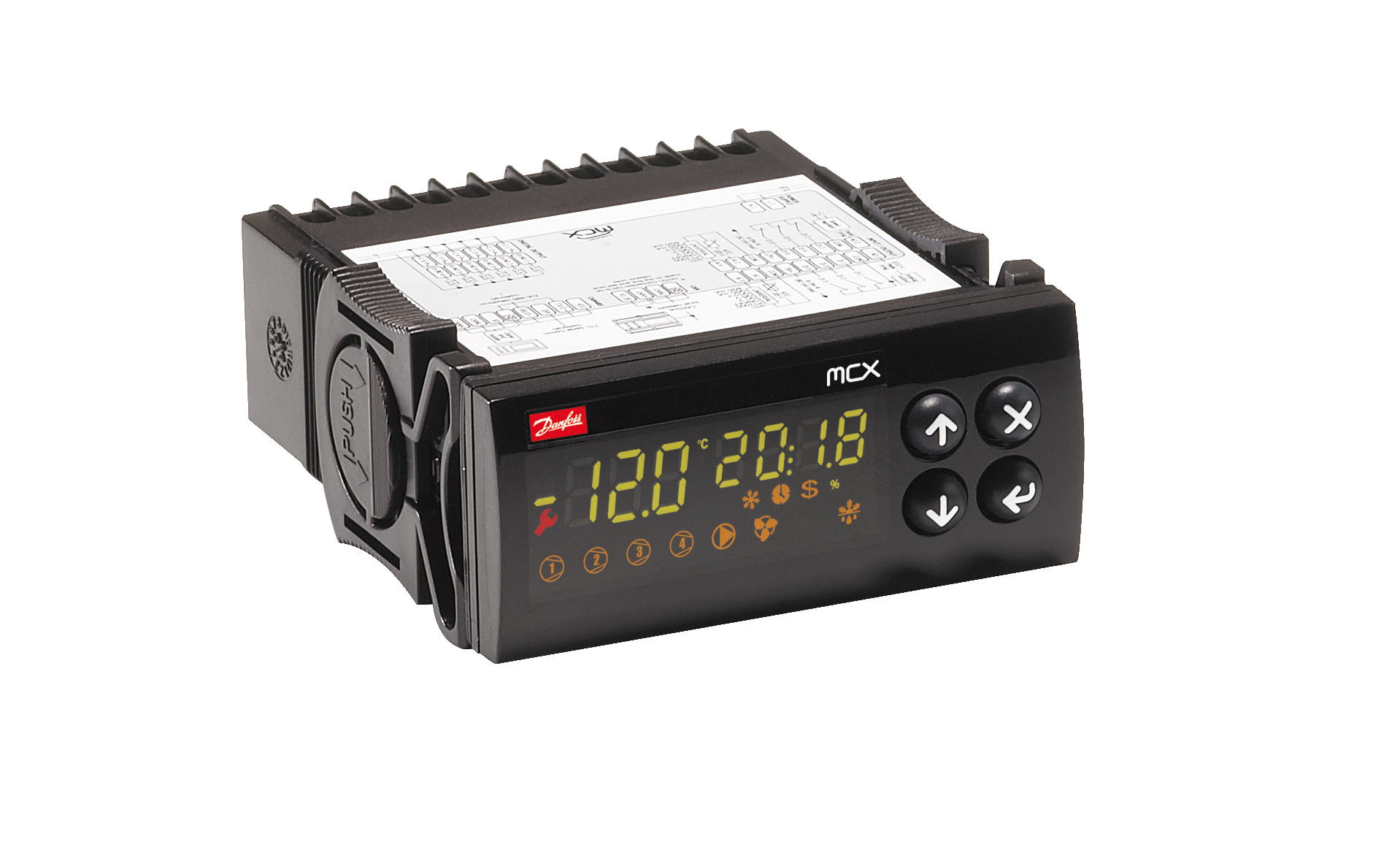

MCX06C
Danfoss lists it as a 6-relay programmable controller. Same on every MCX06C code below:
- Digital inputs: 6
- Digital outputs: 6
- Analog inputs: 4
- Analog outputs: 2
- Communication: CANBUS; MODBUS; RS485
- Supply: 24 V AC / 24 V DC
- Power consumption: 6 W
- Enclosure: IP65
- Mounting: Panel mounting
- Display: LED
- Real-time clock: Yes
- Notes: RS 485 not opto isolated
- Approvals: CE; GOST R; UL
| Code | Packing |
|---|---|
| 080G0066 | Single pack, 1 pc, connector kit 080G0175 sold separately |
| 080G0107 | Industrial pack, 36 pc, connector kit 080G0175 sold separately |

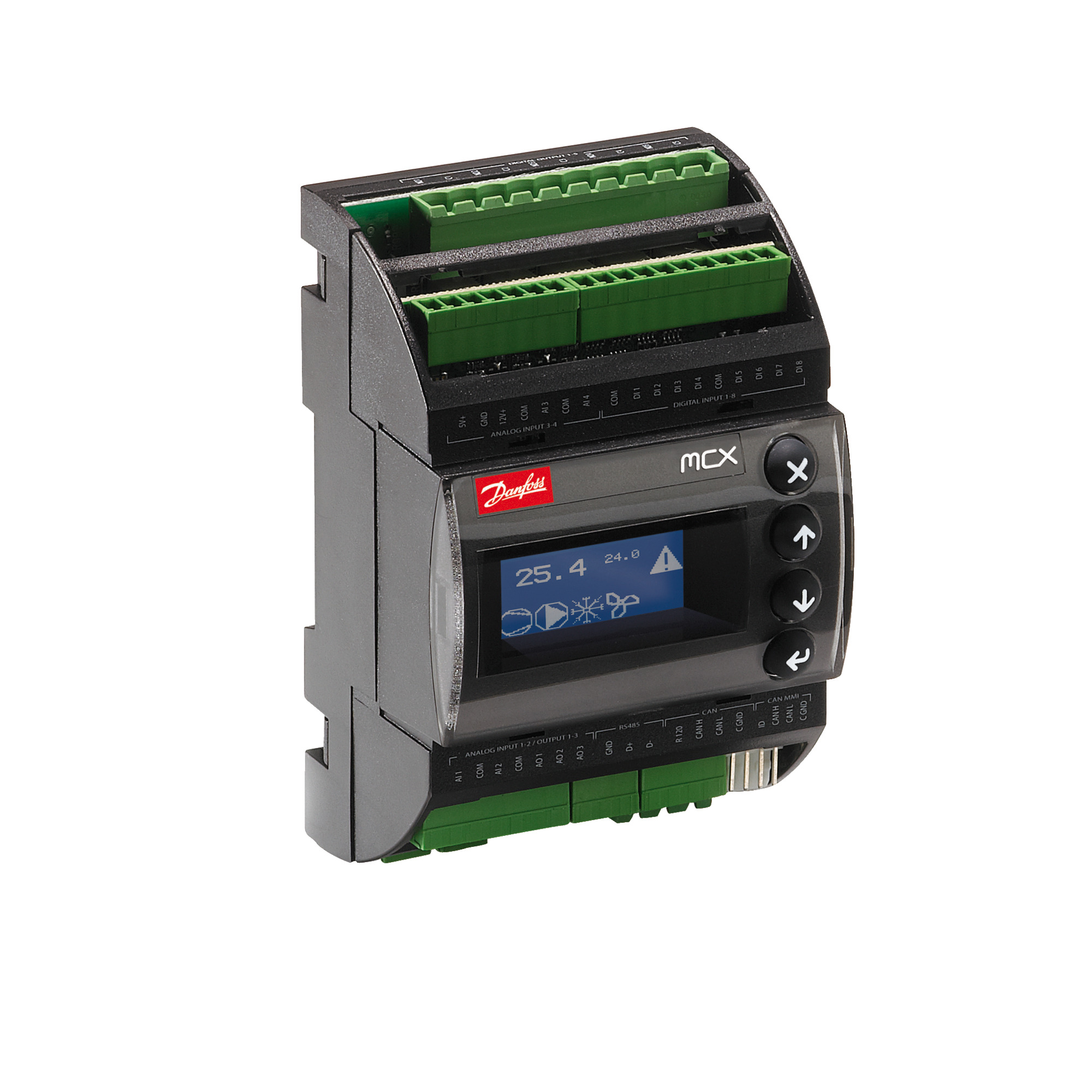

MCX06D
Danfoss lists it as a 6-relay programmable controller. Same on every MCX06D code below:
- Digital inputs: 8
- Digital outputs: 6
- Analog inputs: 4
- Analog outputs: 3
- Supply: 24 V AC / 24 V DC
- Power consumption: 6 W
- Enclosure: IP40
- Mounting: DIN rail
- Approvals: CE; CMIM; EAC; GOST R; UL
| Code | Communication | Display | Real-time clock | Packing |
|---|---|---|---|---|
| 080G0111 | CANBUS | LCD | No | Single pack, 1 pc, connector kit included |
| 080G0112 | CANBUS; MODBUS; RS485 | LCD | Yes | Single pack, 1 pc, connector kit included |
| 080G0115 | CANBUS; MODBUS; RS485 | No display | Yes | Single pack, 1 pc, connector kit included |
| 080G0166 | CANBUS | LCD | No | Industrial pack, 32 pc, connector kit 080G0179 sold separately |
| 080G0167 | CANBUS; MODBUS; RS485 | LCD | Yes | Industrial pack, 32 pc, connector kit 080G0179 sold separately |
| 080G0169 | CANBUS; MODBUS; RS485 | No display | Yes | Industrial pack, 32 pc, connector kit 080G0179 sold separately |

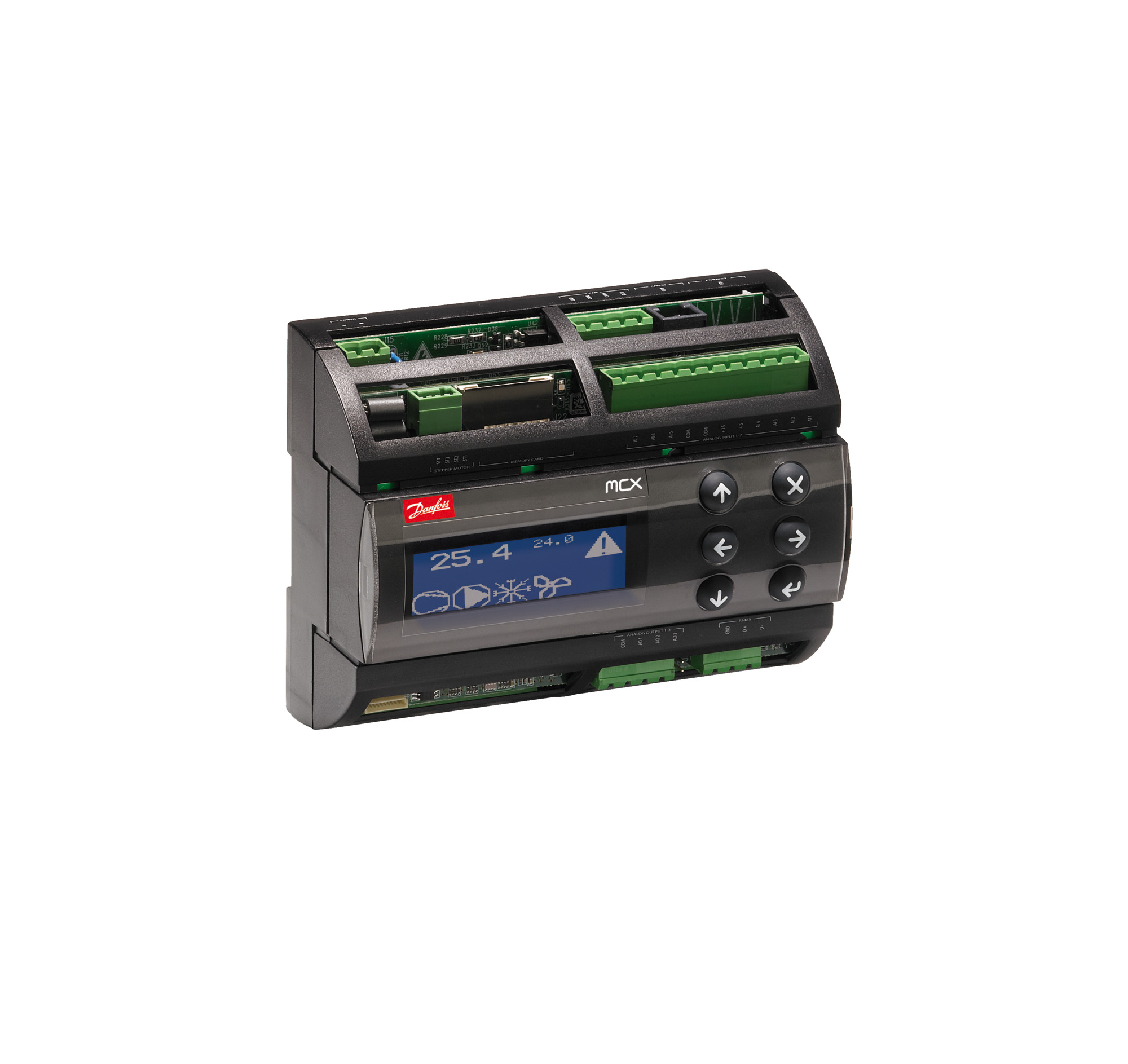

MCX061V
Danfoss lists it as a 6-relay programmable controller. Same on every MCX061V code below:
- Digital inputs: 8
- Analog inputs: 7
- Analog outputs: 3
- Enclosure: IP40
- Mounting: DIN rail
- Display: LCD
- Real-time clock: Yes
- Approvals: CE; GOST R; UL
| Code | Digital outputs | Communication | Supply | Power consumption | Notes | Packing |
|---|---|---|---|---|---|---|
| 080G0250 | 6 | CANBUS; MODBUS; RS485 | 110–230 V AC | 27 W | Backup Battery Input | Single pack, 1 pc, connector kit included |
| 080G0251 | 8 | CANBUS; MODBUS; RS485 | 24 V AC | — | Backup Battery Input | Single pack, 1 pc, connector kit included |
| 080G0255 | 8 | CANBUS; Ethernet; MODBUS; RS485 | 24 V AC | 22 W | Memory card,Ethernet; Backup Battery Input | Single pack, 1 pc, connector kit included |

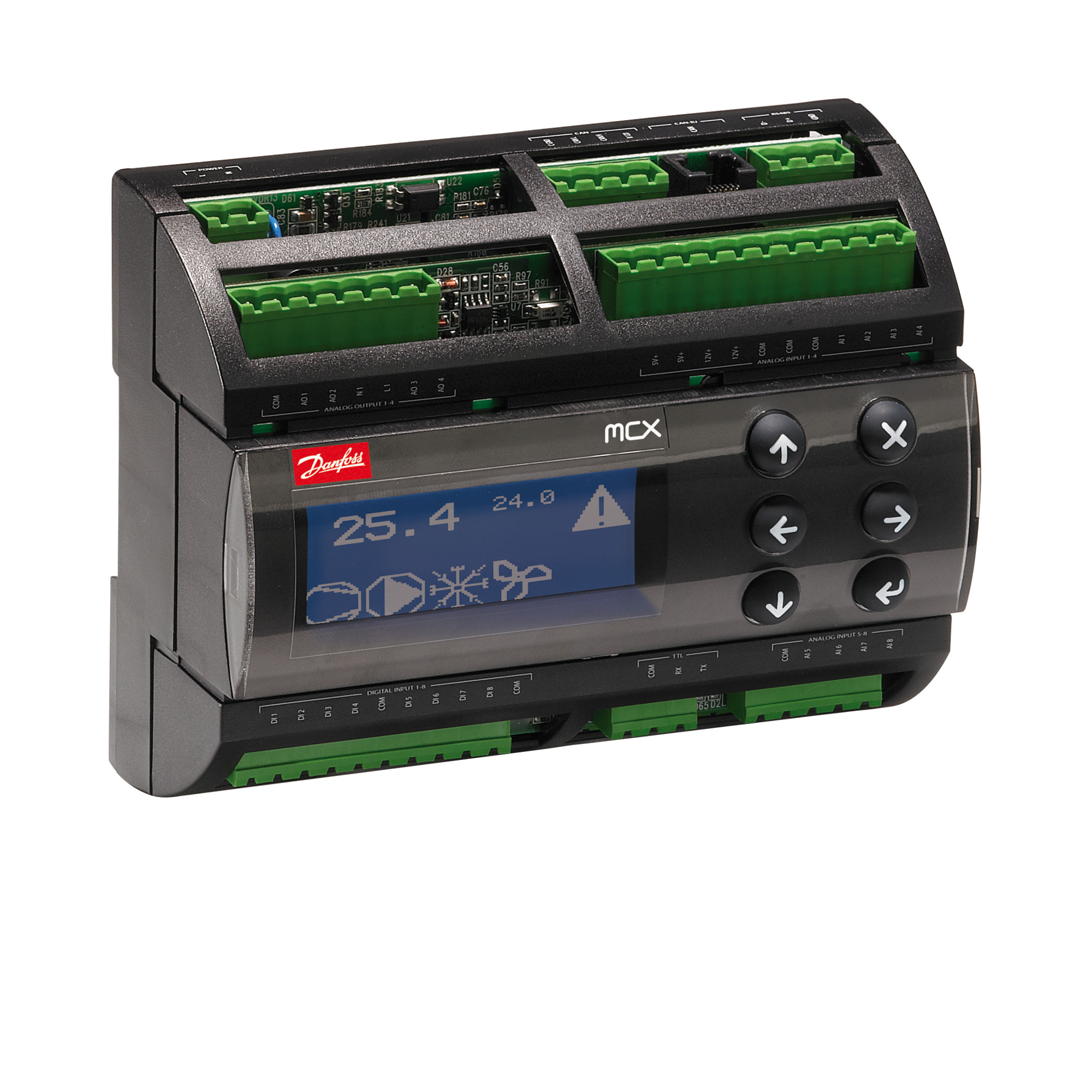

MCX08M2
Danfoss lists it as an 8-relay programmable controller. Same on every MCX08M2 code below:
- Digital inputs: 8
- Digital outputs: 8
- Analog inputs: 8
- Analog outputs: 4
- Power consumption: 10 W
- Enclosure: IP40
- Real-time clock: Yes
| Code | Communication | Supply | Mounting | Display | Notes | Approvals | Packing |
|---|---|---|---|---|---|---|---|
| 080G0293 | CANBUS; MODBUS; RS485 | 24 V AC / 24 V DC | DIN rail | No display | — | CE; EAC; LLC CDC TYSK; UL | Single pack, 1 pc, connector kit included |
| 080G0303 | CANBUS; MODBUS; RS485 | 24 V AC / 24 V DC | DIN rail | No display | — | CE; EAC; LLC CDC TYSK; UL | Industrial pack, 24 pc, connector kit 080G0180 sold separately |
| 080G0307 | CANBUS; MODBUS; RS485 | 110–230 V AC | DIN rail | LCD | — | CE; EAC; LLC CDC TYSK; UL | Single pack, 1 pc, connector kit included |
| 080G0310 | CANBUS; MODBUS; RS485 | 24 V AC / 24 V DC | DIN rail | LCD | — | CE; EAC; LLC CDC TYSK; UL | Single pack, 1 pc, connector kit included |
| 080G0314 | CANBUS; MODBUS | 110–230 V AC | — | No display | D.O. 5 and 6 use Solid state; relays | CE; EAC; LLC CDC TYSK; UL | Industrial pack, 24 pc, connector kit 080G0180 sold separately |
| 080G0315 | CANBUS; MODBUS; RS485 | 24 V AC / 24 V DC | DIN rail | LCD | — | CE; EAC; LLC CDC TYSK; UL | Industrial pack, 24 pc, connector kit 080G0180 sold separately |
| 080G0316 | CANBUS; MODBUS; RS485 | 110–230 V AC | DIN rail | No display | — | CE; EAC; LLC CDC TYSK; UL | Industrial pack, 24 pc, connector kit 080G0180 sold separately |
| 080G0337 | MODBUS | 24 V AC / 24 V DC | DIN rail | No display | — | CE; EAC; LLC CDC EURO-TYSK; UL | Single pack, 1 pc, connector kit included |
193U8012 (MCX08M2): Danfoss's data for this code lists only communication CANBUS; MODBUS; RS485; supply 24 V AC / 24 V DC; enclosure IP40; display LCD.

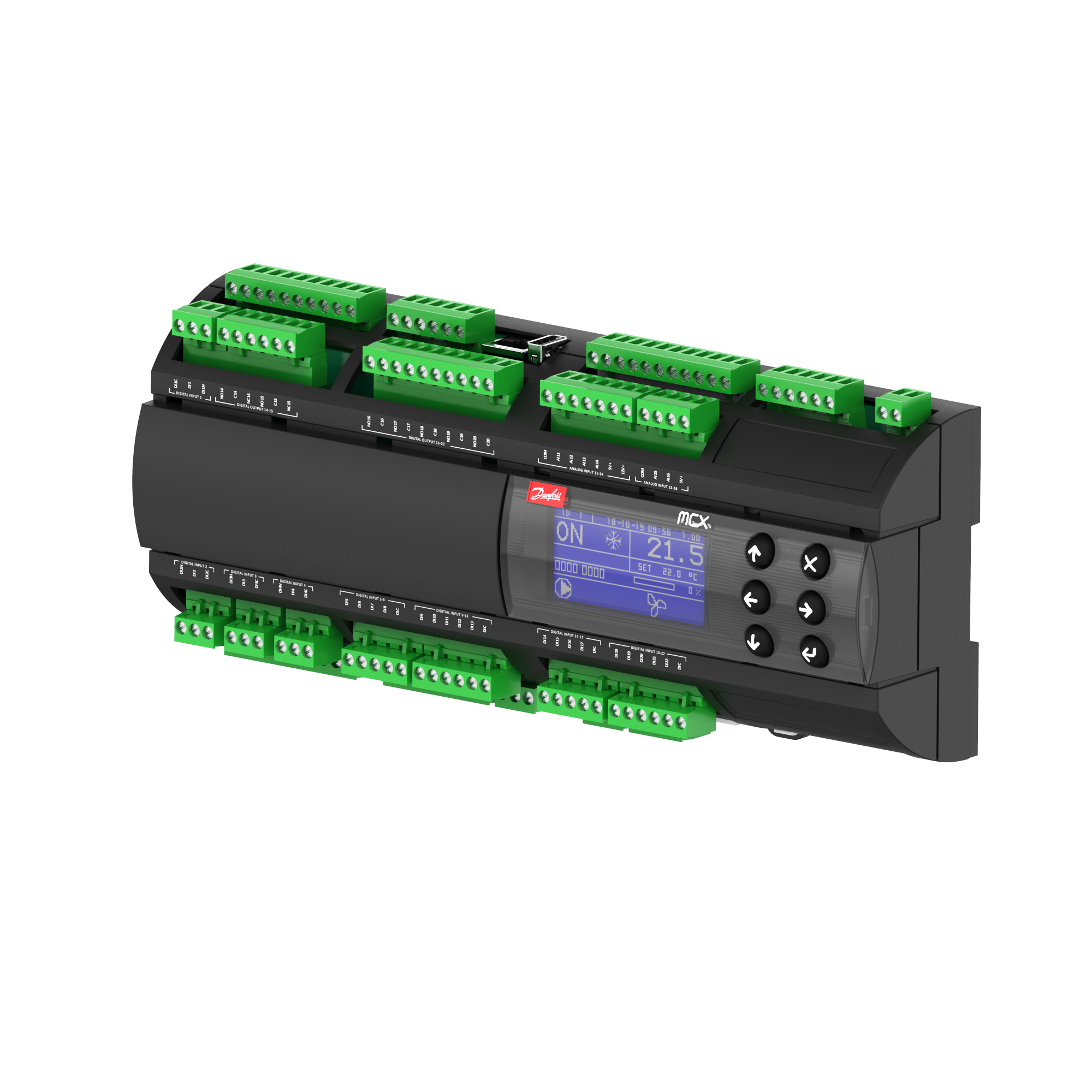

MCX15B2
Danfoss lists it as a 15-relay programmable controller. Same on every MCX15B2 code below:
- Digital inputs: 22
- Digital outputs: 15
- Analog inputs: 10
- Analog outputs: 6
- Supply: 24–230 V AC / 40–230 V DC
- Power consumption: 15 W
- Enclosure: IP40
- Mounting: DIN rail
- Real-time clock: Yes
- Approvals: CE; EAC; UA; UL Recognized
| Code | Communication | Display | Packing |
|---|---|---|---|
| 080G0327 | 1RS485; CANBUS; USB; Ethernet | No display | Single pack, 1 pc, connector kit included |
| 080G0328 | 1RS485 MODBUS; CANBUS; Ethernet; USB | LCD | Single pack, 1 pc, connector kit included |

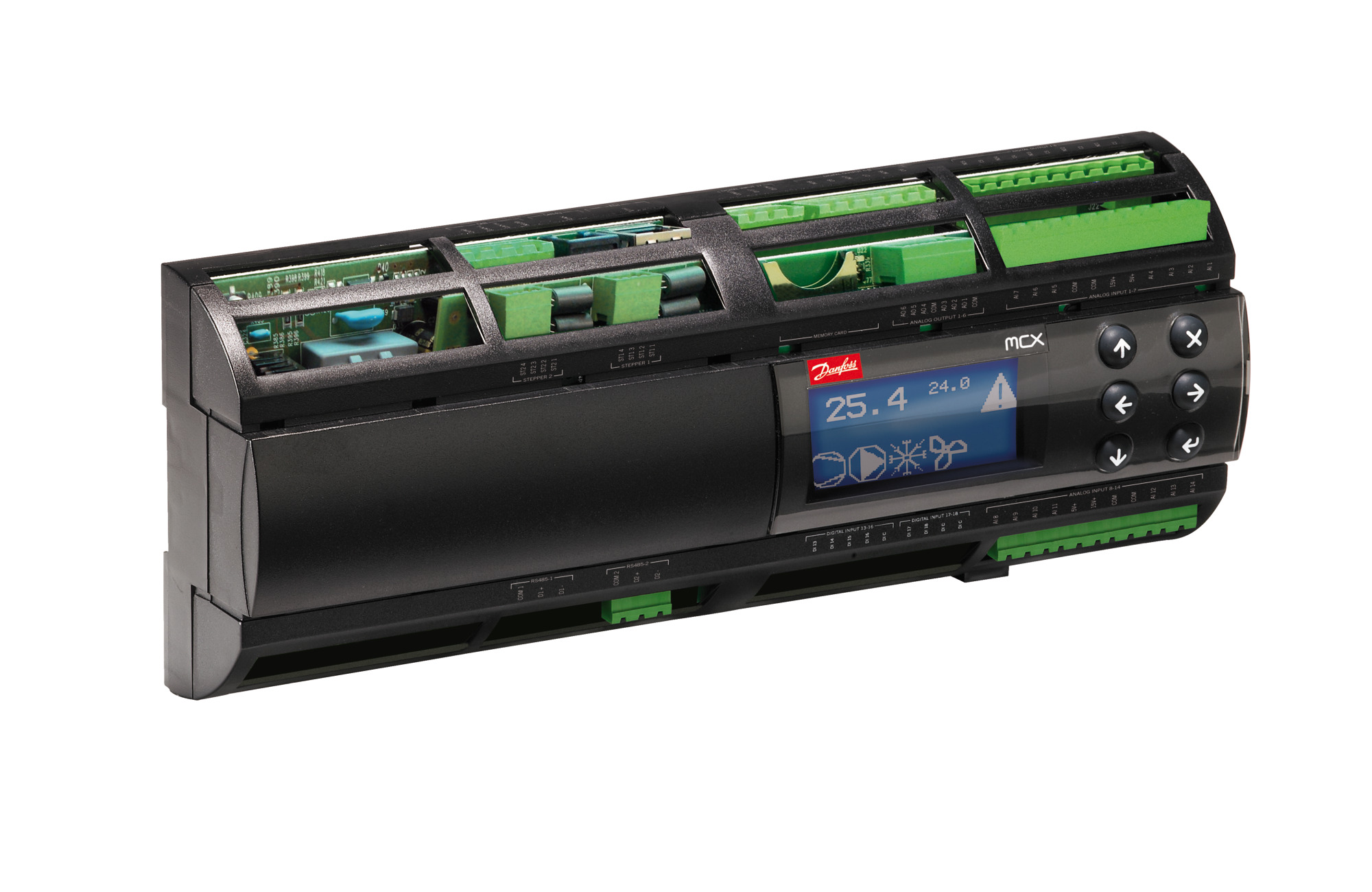

MCX152V
Danfoss lists it as a 15-relay programmable controller. Same on every MCX152V code below:
- Digital inputs: 18
- Digital outputs: 15
- Analog inputs: 14
- Analog outputs: 6
- Power consumption: 27 W
- Enclosure: IP40
- Mounting: DIN rail
- Real-time clock: Yes
- Approvals: CE; GOST R
| Code | Communication | Supply | Display | Notes | Packing |
|---|---|---|---|---|---|
| 080G0284 | CANBUS; Ethernet; MODBUS; RS485 | 24 V AC | LCD | Memory card, Ethernet; Backup Battery Input | Single pack, 1 pc, connector kit included |
| 080G0285 | CANBUS; Ethernet; MODBUS; RS485 | 110–230 V AC | LCD | Backup Battery Input | Single pack, 1 pc, connector kit included |
| 080G0313 | CANBUS; MODBUS; RS485 | 24 V AC | No display | Backup Battery Input | Single pack, 1 pc, connector kit included |
MCX20B2
Danfoss lists it as a 20-relay programmable controller. Same on every MCX20B2 code below:
- Digital inputs: 22
- Digital outputs: 20
- Analog inputs: 16
- Analog outputs: 6
- Communication: 2xRS485 MODBUS; CANBUS; Ethernet; USB
- Supply: 24–230 V AC / 40–230 V DC
- Power consumption: 15 W
- Enclosure: IP40
- Mounting: DIN rail
- Real-time clock: Yes
- Approvals: CE; EAC; UA; UL Recognized
| Code | Display | Packing |
|---|---|---|
| 080G0329 | No display | Industrial pack, 12 pc, connector kit 080G0182 sold separately |
| 080G0330 | LCD | Single pack, 1 pc, connector kit included |
| 080G0331 | LCD | Industrial pack, 12 pc, connector kit 080G0182 sold separately |
| 080G0332 | LCD | Single pack, 1 pc, connector kit included |
MCX expansion and backup power
MCX 08M2 electric expansion module
- Digital outputs: 8
- Communication: CANBUS; MODBUS; RS485
- Supply: 85–265 V AC / 20–60 V DC
- Power consumption: 10 W
- Ambient temperature: -20 °C to 60 °C
- Enclosure: IP40
- Mounting: DIN rail
- Danfoss lists it for: IPS 8
- Approvals: CE; EAC; LLC CDC TYSK; UL
Code 080G5040 · Request a quote

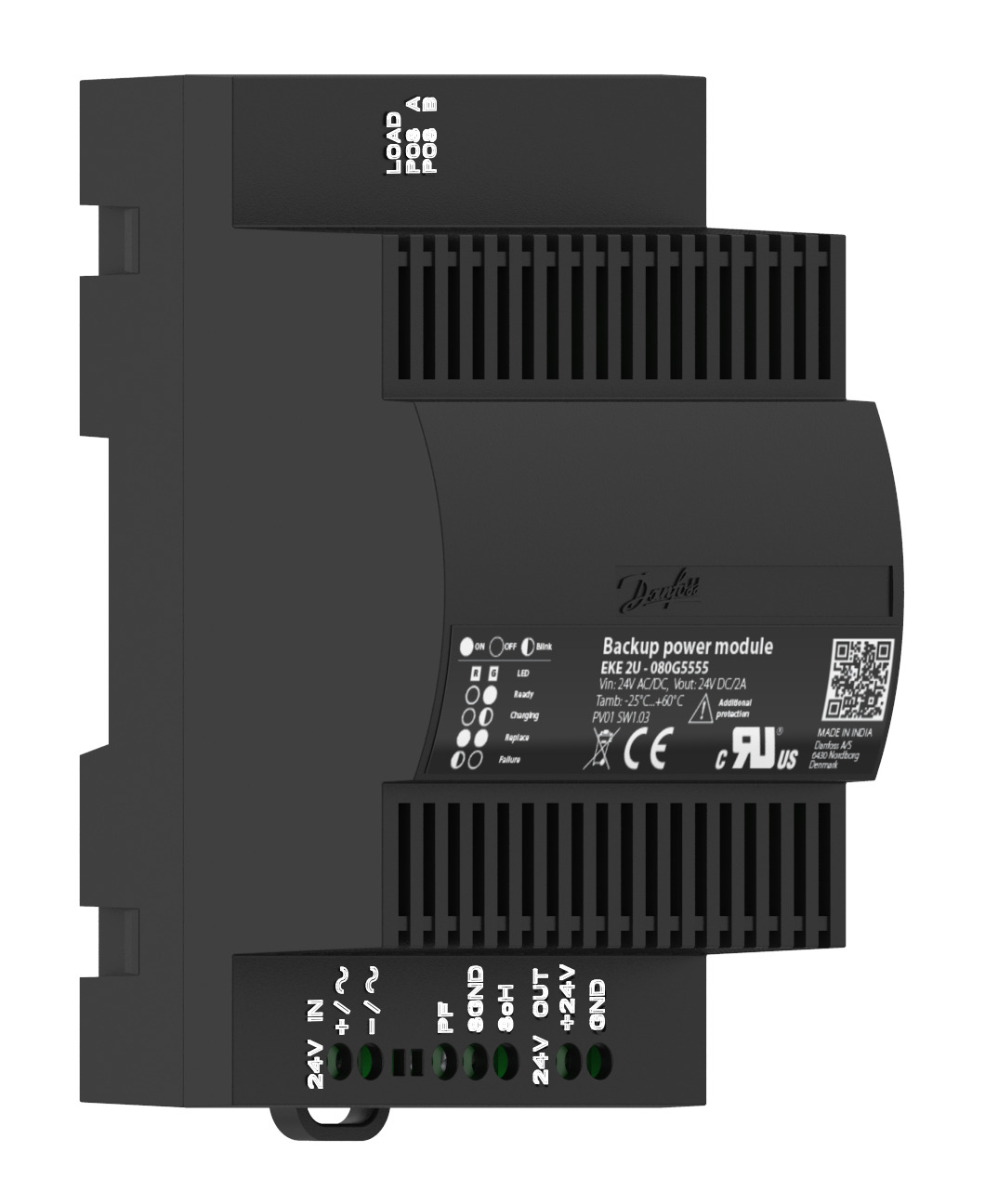

EKE 2U backup power module
Danfoss lists: backup power for up to 2 EKE 1, status LEDs and status output (charging, ready, failed, replace), state-of-health detection, shared power supply.
- Supply: 24 V AC / 24 V DC
- Ambient temperature: -25 °C to 60 °C
- Mounting: DIN rail
- Danfoss lists it for: EIM 365; EKD 316; EKD 316C; EKE 1A; EKE 1B; EKE 1C; EKE 1D; MCX061V; MCX152V
- Approvals: CE; RoHS; UL
Code 080G5555 · Request a quote
MCX accessories and sensors
Connector kits
| Code | Danfoss description | Packing |
|---|---|---|
| 080G0175 | ACCCNX, MCX06C CONNECTORS KIT | Multi pack, 100 pc |
| 080G0179 | ACCCNX Connectors MCX/EXC06D | Multi pack, 100 pc |
| 080G0180 | ACCCNX Connectors MCX-08M | Multi pack, 100 pc |
| 080G0404 | Connector Kit for MCX20B2 | Multi pack, 50 pc |
Cables
| Code | Danfoss description | Packing |
|---|---|---|
| 080G0075 | ACCCBI Cable, U.I. 1.5m | Multi pack, 100 pc |
| 080G0076 | ACCCBI Cable Telephone U.I. 3m | Multi pack, 100 pc |
| 080G0081 | ACCCNX Cable Wired for MCX06C 1m | Multi pack, 36 pc |
| 080G0082 | ACCCNX Cable Wired for MCX06C 2m | Multi pack, 18 pc |
| 080G0239 | ACCCBI Cable MMILDS RJ/JST 2m | Multi pack, 100 pc |
Gateway
| Code | Danfoss description | Packing |
|---|---|---|
| 080G0269 | ACCGTW Elect.Control Gateway BACnet | Multi pack, 1 pc |
Transformers
| Code | Danfoss description | Packing |
|---|---|---|
| 080G0223 | ACCTRS Transformer 230/24VAC 12VA | Multi pack, 40 pc |
| 080G0225 | ACCTRS Transformer 230/24VAC 22VA | Multi pack, 28 pc |
| 080G0226 | ACCTRS Transformer 230/24VAC 35VA | Multi pack, 11 pc |
Fan speed controllers
| Code | Danfoss description | Packing |
|---|---|---|
| 080G0217 | ACCSCS Elect.Control 400VAC 8A | Multi pack, 15 pc |
| 080G0218 | ACCSCS Elect.Control 400VAC 12A | Multi pack, 10 pc |
| 080G0219 | ACCSCS Elect.Control 400VAC 20A | Multi pack, 5 pc |
| 080G0220 | ACCSCS Elect.Control 400VAC 28A | Multi pack, 1 pc |
| 080G0279 | ACCSCS Elect.Control 400VAC 8A I/20 | Industrial pack, 20 pc |
Temperature sensors
| Code | Danfoss description | Packing |
|---|---|---|
| 080G0202 | ACCPBT Probe NTC IP68 6x20 3m- I/P 10 | Industrial pack, 10 pc |
| 080G0205 | ACCPBT Probe NTC IP68 6x40 1.5m - I/P 10 | Industrial pack, 10 pc |
| 080G0206 | ACCPBT Probe NTC IP68 6x40 3m - I/P 10 | Industrial pack, 10 pc |
| 080G0207 | ACCPBT Probe NTC IP68 6x40 6m - I/P 10 | Industrial pack, 10 pc |
| 080G0209 | ACCPBT Probe PT1000 IP68 6x40 1.5m-I/P 10 | Industrial pack, 10 pc |
| 080G0210 | ACCPBT Probe PT1000 IP68 6x40 6m - I/P 10 | Industrial pack, 10 pc |
| 080G0211 | ACCPBT Probe PT1000 IP44 5x40 1.5m-I/P10 | Industrial pack, 10 pc |
| 080G0212 | ACCPBT Probe NTC IP67 6x40 1.5m-I/P10 | Industrial pack, 10 pc |
Specifications: Danfoss product data (store.danfoss.com), read 21 October 2026. Check ratings against Danfoss documentation before you design in.
